● Test current: 120A (customizable); same side of the terminal
● Battery tab spacing: 80-220
● Cable lug size: M10
● Compatible battery dimensions: Length: 60-300; Width: 15-86; Height: 60-209

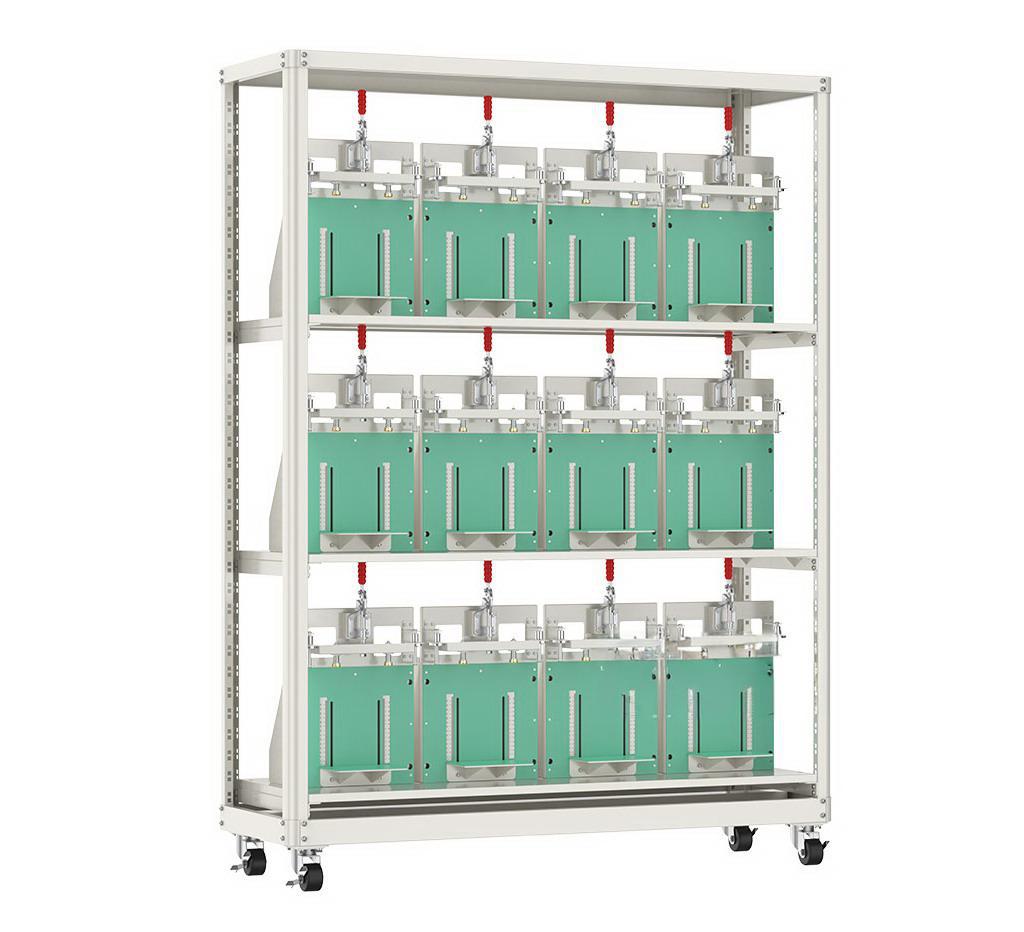

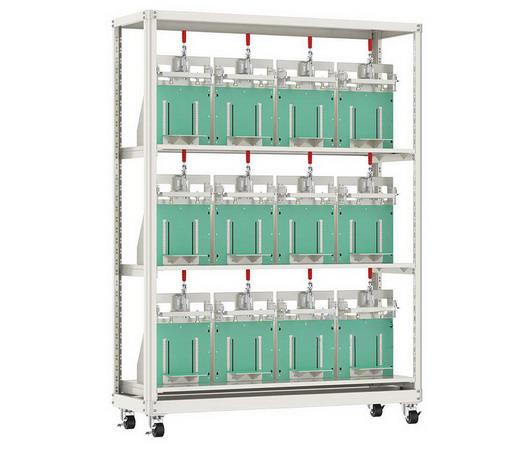

● Number of battery rack channels: 12CH
● Battery rack arrangement: Number of layers: 3; Number of channels per layer: 4; Single/double-sided: Single
● Battery rack weight: 241KG
● Overall dimensions of the battery rack: length: 1435; width: 474; height: 1930
● Overall dimensions of the test unit: length: 304; width: 279; height: 555
